Monday, December 07, 2020

Salient Features Of Scramjet Engine And Its Applications For Hypersonic Vehicles



Salient Features Of Scramjet Engine And Its Applications For Hypersonic Vehicles

        The scramejet uses a slightly modified Brayton Cycle to produce power, similar to that used for both the classical ramjet and turbine engine. Where Air is compressed and the  fuel injected, mixed and burned to increase the air, the combustion products are Temperature and Pressure then these combustion products are expanded.




For Turbojet engine Air is mechanically compressed by combustor using a turbine. In principle the ramjet and scramjet works the same. Where the forward motion of the vehicle compresses the air then the Fuel injected into the compressed air and burned. Results the high pressure combustion products expand through the Nozzle. Elevating the surface pressure and moving the vehicle forward.

Sunday, December 06, 2020

SCRAMJET



SCRAMJET


  • The wall of Ramjet will tend to fail at the higher temperature around 2500k,
  • Like Turbojets, Conventional ramjets are also limited by material problem at high Mach Number.
  • When the temperature of the air entering the combustor is too high, during which the fuel injected, it will be decomposed by the higher temperature instead been burned (Fuel will absorb rather than producing energy).
  • The engine will become a Drag producing machine instead for a Thrust producing device.
  • When the air flow is decrease by the scramjet the relative velocity and kinetic energy both decrease, during that energy required that any missing kinetic energy will reappear as internal energy.
  • When the flight Mach number exceeds about 6 led to decelerate the flow to subsonic speeds.



Advantage

  • No moving parts easies to manufacture.
  • Has less weight and simple design.
  • Does not have to carry oxygen tank.
  • High seed could be achieved easier, so cheaper access to outer space in the future.

Disadvantage

  • Scramjet cannot produce efficient thrust unless achieves high speed, around Mach 5.
  • Testing a Scramjet design requires a expensive equipments (hypersonic test chambers and launching vehicles).
  • Lack of strength.










Parts of Scramjet Engine

Scramjet Engine

        Scramjet is a variation of a Ramjet Engine, It is a type of Air breathing Engine where the combustion takes place in subsonic airflow, Scramjet  is supersonic throughout the entire engine , Scramjet operate more effective at extreme high speed of about Mach 5.




Parts of Scramjet Engine

  • Inlet
  • Isolator
  • Combustor
  • Nozzle





        The different Part of a Scramjet engine is Inlet, Isolator, Combustor and Nozzle. The scramjet engine must be integrated with the Fuselage of the aircraft, specially the air inlet and the Nozzle. Part of the forebody aircraft fuselarge makes the function of air let compressing the freestream air, and the after body acts as a nozzle expanding the gases for the combustion.


Tuesday, December 01, 2020

Salient Features of Liquid Propellant Rockets



Salient Features of Liquid Propellant Rockets:


                A liquid propellant propulsion system is commonly called rocket engines. It has all the hardware components and propellants necessary for its operations for producing thrust.



Liquid propellant propulsion system

Consists of one or more thrust chambers, one or more tanks to store propellants, a feed mechanism to force the propellants from the tanks into the thrust chamber, power source to furnish the energy for the feed mechanism, suitable plumbing or piping or piping to transfer the liquids,




Has a structure to transmit the thrust force, and control devices to initiate and regulate the propellant flow and thus the thrust.

In some application an engine may also include a thrust vector control system, various instrumentation and residual propellant (trapped in pipes, valves, or wetting tanks).

It does not include hardware for non-propulsive purpose, such as aerodynamic surface, guidance, or navigation equipment, or useful payload such as scientific space exploration package or missile warhead.



Friday, November 27, 2020

Ramjet Engines in Fighter Aircraft



Ramjet Engines in Fighter Aircraft

            Ramjet Engines is a type of Combustion Engine, comes under the category of Air breathing engine. It is the simplest of all the air breathing engines. It consists of a Diffuser, Combustion chamber and a Nozzle, and ramjets do not need any moving parts such as compressors and consequently no turbine as well.




Major Assemble of Ramjet Engines

  • Diffuser
  • Combustion Chamber
  • Nozzle




Ramjet Engines mechanism are less complicated jet engine for producing thrust in flying vehicle.

Ramjet Engines are most efficient when operated at supersonic speeds.

All the compression is occurs in the intake diffuser section producing rise in the static pressure.

When the air decelerated from a high mach number to a low subsonic mach number, it results in substantial increase in pressure and temperature so the ramjet does not need Compressor and Turbine.



Working

Ramjet produces power by increasing the momentum of the moving fluid by induction of energy by combustion of fuel, so the momentum of the exhaust jet greater and exceed that of the incoming air on continuous cycle.

Where the Fuel is burned the high pressure air and the mixture is then expanded to ambient static pressure through a Nozzle System.

High pressure gas expanded through the Nozzle by converting the low subsonic flow in the combustion chamber into a supersonic jet.

The combine mixture of air and fuel (supersonic jet) exhausted through the C-D Nozzle.


Working cycle of Ramjet Engines



source:NPTL

Thursday, November 26, 2020

Ramjet Engines



Ramjet Engines

            Ramjet Engines is a type of Combustion Engine, comes under the category of Air breathing engine. It is the simplest of all the air breathing engines. It consists of a Diffuser, Combustion chamber and a Nozzle, and ramjets do not need any moving parts such as compressors and consequently no turbine as well.


Major Assemble of Ramjet Engines

  • Diffuser
  • Combustion Chamber
  • Nozzle




Ramjet Engines mechanism are less complicated jet engine for producing thrust in flying vehicle.

Ramjet Engines are most efficient when operated at supersonic speeds.

All the compression is occurs in the intake diffuser section producing rise in the static pressure.

When the air decelerated from a high mach number to a low subsonic mach number, it results in substantial increase in pressure and temperature so the ramjet does not need Compressor and Turbine.



Working

Ramjet produces power by increasing the momentum of the moving fluid by induction of energy by combustion of fuel, so the momentum of the exhaust jet greater and exceed that of the incoming air on continuous cycle.

Where the Fuel is burned the high pressure air and the mixture is then expanded to ambient static pressure through a Nozzle System.

High pressure gas expanded through the Nozzle by converting the low subsonic flow in the combustion chamber into a supersonic jet.

The combine mixture of air and fuel (supersonic jet) exhausted through the C-D Nozzle.


Working cycle of Ramjet Engines



source:NPTL



Monday, November 23, 2020

Types of flow in Aerodynamic



Different Types of flow in Aerodynamic

    Aerodynamics is a part fluid dynamics which deals with the laws of the flow of air or other gases.



Types of flow in Aerodynamic

  • Compressible Flow
  • Viscous Flow
  • Inviscid Flow
  • Steady Flow
  • Uniform Flow
  • Rotational Flow

Compressible Flow:  Compressible flow do undergo density changes, Gases are generally compressible.

Viscous Flow: The viscosity of a fluid is a measure of its resistance to gradual deformation by shearstress or tensile stress. Viscosity is due to the friction between neighboring particles in a fluid that are moving in different velocities.

Inviscid Flow: Is the flow of an ideal fluid that is assumed to have no viscosity.

Uniform Flow: It the flow velocity is the same magnitude and direction at every point.

Rotational Flow: If the angle between the two intersecting lines of the boundary of the fluid element changes while moving in the flow.

Sunday, November 22, 2020

Turboprop Engine Components



What are components does Turboprop Engine have?

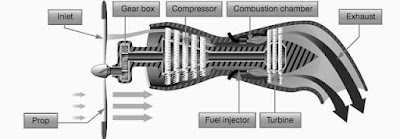

Turboprop Engine Components

Turboprop is one among the type of Turbine Engine which is used to drive the propeller of the aircraft.

Major assemblies of a Turboprop Engine



  • Intake
  • Propeller
  • Gear Box
  • Compressor
  • Fuel Injector
  • Combustion chamber
  • Turbine
  • Nozzle


Click Follow for daily updates about aircraft technologies.



Saturday, November 21, 2020

Types of Jet Engines





What are the Types of Jet Engines used in Aircraft?


Turbofan Engine



Turboprop Engine



Turbojet Engine



Turboshaft Engine



Ramjet Engine



Scramjet Engine


Click Follow for daily updates about aircraft technologies.


Friday, November 20, 2020

Helicopter fuselages components



What are components does any Helicopter fuselages have?



Major assemblies of a Single-Rotor Helicopter

  • CABIN
  • COCKPIT
  • COCKPIT DOOR
  • PASSENGER DOOR
  • INTEGRAL FUEL TANK
  • BAGGAGE COMPARTMENT
  • TAIL CONE
  • HORIZONTAL STABILIZER
  • VERTICAL STABILIZER
  • BATTERY AND ELECTRICAL             COMPARTMENT
  • ENGINE COMPARTMENT
  • TRANSMISSION COMPARTMENT
  • FLIGHT CONTROL ENCLOSURE
  • ELECTRONIC COMPORTMENT

  • Click Follow for daily updates about aircraft technologies.


    Sunday, September 13, 2020

    UAVs Unmanned Aerial Vehicles



    UAVs Unmanned Aerial Vehicles

                    After the Wright brothers worked so hard to put humans in the air by flying machines, now a day’s some aerospace engineers are working hard to take out of the flying machine. UAVs Unmanned Aerial Vehicles are the Airplanes that have no humans on board which are operated and flown remotely by pilots.




    Israel is the first nation to use UAVs in the combat situation arguing that loss of relative inexpensive UAVs was better than the loss of a pilot and a multi-million dollar airplane.

    UAVs are mainly used to carry sensors, target designated and electronic transmitters

     Designed to destroy enemy’s target, UAVs are more effective fly at greater range and endurance.

    Range – Is the maximum distance an aircraft can fly between takeoff and landing.

    Endurance – Is the maximum length of time that an aircraft can spend in cruising flight (level flight).




    Monday, August 31, 2020

    Aircraft Powerplant Outer Structures

     Aircraft Powerplant Outer Structures

                   Aircraft powerplants produces the source of thrust to move the aircraft through the air, at the same time they are also the source of vibration, heat and drag forces. Powerplant Structures includes both the propeller and Engine work in combination to produce thrust. Engine provides the source of power to rotate the propeller.  Propeller is mounted at the front of the engine converts the rotatory force into Thrust in the engine.




    Powerplant Outer Structures components

    Nacelles

    Nacelles encloses the engine provide the streamline flow (uniform flow) of air over the outer surface of the engine to improve the aerodynamics of the aircraft. Protect the engine and its components during flight. Allow the proper flow air to engine for cooling and combustion.


    Nacelles



    Fire walls

    Firewalls are normally located near to the engine compartment. Engine, Auxiliary power units, combustion chamber and turbine produces tremendous amount of heat which affect other aircraft component and it functionality, to protect other aircraft component from this heat effect sections of the turbine engine must be isolated from the remainder of the aircraft by means of firewalls. Firewall is used to protect the nacelle strut and systems from the exposure.

    Fire walls


    Engine Mount

    Engine mount is frame structures that support the engine and connect it to the fuselage. Which are designed to distribute the weight of the engine and distribute torque and vibration generate from the engine.


    Engine Mount


    Cowlings and Fairings

    Cowlings and Fairings both are similar, which are removable covering for covering the portions of the airplane (Engine, Mounts and other engine components). Design to provide uniform flow of air over the engine surface improve the aerodynamics of the aircraft.

    Cowlings and Fairings





    Wednesday, August 19, 2020

    Aircraft engine Firewalls



    Aircraft engine Firewalls

                          Firewalls are normally located near to the engine compartment.Engine, Auxiliary power units, combustion chamber and turbine produces tremendous amount of heat which affect other aircraft component and it functionality, to protect other aircraft component from this heat effect sections of the turbine engine must be isolated from the remainder of the aircraft by means of firewalls. Firewall is used to protect the nacelle strut and systems from the exposure.


    Aircraft engine Firewalls



    Design

    Firewall should design in such a manner that no hazardous quality of air, fluids, or flame can pass from the compartment to other portions of the aircraft.

    To be easy access to repair and installation because they normally located in the engine compartment, later there may be need to remove and replace the engine or other components.



    Aircraft engine Firewalls

    Material

    Material used should provide protection against both heat and corrosion, Base on which following materials been used

    • Stainless steel
    • Titanium
    • Copper or steel based alloy
    • Terne plate

    Saturday, August 15, 2020

    Engine Mounts

    Engine Mounts

            Engine mount is frame structures that support the engine and connect it to the fuselage. Which are designed to distribute the weight of the engine and distribute torque and vibration generated by the engine, Vibration that originated in the reciprocating engine are transmitted through the engine mount to the airplane structure for such mounts engine must be attached with some sort of rubber bushing between the engine and mount attachment to control these vibration.

    Engine Mounts


    Maximum vibration from the engines are controlled when tightened so that the engines move slightly with respect to the rubber bushing which limits in a torsion during operating condition, But at the same time if the bolt are too tight the mount structure will tend to vibrate along engine which would transmitted to Airplane wing and fuselage structure which would be undesirable. To avoid over tighten of bolts the technicians should always refer to the manufacture’s service before tightening such bolts.

    Material Used

    Engine Mount should withstand waste heat released from the engine and ability to carry heavy engines at temperature of up to 500 C base on the requirement three alloys types are used

    Nickel-Based alloys: Can withstand high extreme temperature

    Titanium alloys:  half the weight of steel, used in the place where the light weight material is needed

    Steel alloys: Use at the place where high strength needed at very low temperature.

    Based On Aircraft

    Light Aircraft - Engine mounts made of welded-steel tubing or aluminium alloy sheet metal.

    Turbine powered Aircraft - Engine mounts made of forged metal bolted to airframe.

    Design and Types

    Engine mounts vary widely in appearance and Construction, but basic features of construction are same. Each aircraft differs from other, heat released from the engine differs base on this criteria each new engine mount should also be unique and to be designed that engine and its accessories should be easy for inspection and maintenance.

    Most aircraft which exactly from same manufacturer of the engine shall uses the same mount.

    Engine Mounts

    Types

    Dynafocal engine mount

    Protects the vibration and motion from the engine to be transmitted to aircraft structure, Fixing is based on the centre of gravity of the engine.

    Shape: Ring-like

    Bolt Point: Usually Four points



    Conical mount

    Conical mount are attached parallel to the firewalls, easy for installation simple and easy to fix to aircraft.

    Bolt Point: Usually Four points

    Drawbacks: Vibration and Torque are transmitted through the Frames



    Bed mount

    Bed mount are attached under the crankcase, which totally differs from the other type of mount (Conical mount and Dynafocal engine mount), Designed for perfect fitting of the engine avoid transmit vibration to the structure

    Bolt Point: Usually Four points in modern aircraft


    Vibration is more Danger to Aircraft leads to failure, Engine Mount Helps to avoid some sort of Vibration to be transmitted to Aircraft Structure.



    For more Related Topic and Information on Aircraft Technology - CLICK HERE



    Friday, August 14, 2020

    Introduction to Helicopter

    Introduction to Helicopter


                     Helicopter is a type of Rotary wing Aircraft that uses rotating wings to provide lift. Rotor blades rotate about a vertical axis generating lift to move the Helicopter upward along with the help of controls and propulsion. Lift is generated by the relative motion of wing surface with respect to the air.



    The helicopter can do vertical flight (vertical take-off and landing) where rotor must efficiently supply thrust force to support to support helicopter weight.

    Helicopter has two Rotor Blades

    Main Rotor Blade

    Main rotor is mounted on a vertical mast head over the top of the helicopter connected with a driven shaft and gear box (to control the speed of the rotating blade).


    Tail Rotor Blade

    Tail rotor is a small rotor mounted at the tail of the helicopter, position and distance from the center of gravity of helicopter to generate needed thrust in same direction with respect to the main rotor rotates. Connected with the shaft powered from main transmission and has gearbox.


    Main use of the tail rotor is to counter the torque, In simple words when the main rotor rotates in clockwise direction the helicopter fuselage structure will rotate in anticlockwise direction if the tail rotor is not mounted, So tail rotor is to counter the torque, and maintain the helicopter fuselage structure stable according to the direction it moves or fly.

    Single main rotor and tail rotor configuration combating used to provide the torque balance (yaw control) to the helicopter.



    Use of helicopters

    Helicopters are used for both military and civil purpose:

    Military

    Search and Rescue Operations

    Anti-submarine activity

    Air observation

    Direct support of infantry, These Helicopters are provided with armaments such as missiles machine guns etc.

    Civil

    Emergency rescue and medical aid purpose

    Agricultural operations

    Forest patrolling, forest fire extinguishing

    Patrolling of highways, oil pipes lines, Electrical supply lines

    Commercial use











    Wednesday, July 22, 2020

    Control Surface of airplane


    Control Surface of airplane

                  Control surface of Aircraft is an aerodynamic device mean by which pilot stabilize aircraft and controls the direction and altitude of an aircraft on flight. Control surface is a movable surface which is lighter in construction has light  spar rod at the front edges to provide strength and rigidity, the spar connect the ribs and covered by the thin skinned sheet. The tabs are attached to the trailing edge of the control surface additional device will be attached based of purpose the control surface is used for transmission of tab loads to the surface.



    Sheet Materials used in Control Surface
    1. Metal structure                   -        Covered with metal skin
    2. Composite Structure          -        Covered with fabric
    3. Wooden Structure              -        Covered with Plywood or fabric

    Drilling

    The hole on the surface made using drain holes to prevent water  trapped inside the structure , which causes the control surface to be thrown out of balance

    Jointing

    Process involved in jointing the components includes fasteners like adhesive and bonding agents.

    Flight Control Surface are sub branched into

    • Primary Control Surface
    • Secondary Control Surface

    Primary Control Surfaceis designed to provide adequate response to controlling device giving a natural feel.
    At low speed control will be smooth and sluggish
    At high speed control will become increasingly firm

    Responding to speed
    At low speed the aircraft respond slow to control applied
    At high speed the aircraft respond more rapid (faster) to control applied

    Primary Control Surface includes:

    Ailerons - (ROLL) Control motion along longitudinal axis.

    Elevator - (PITCH) Control rotational motion along lateral axis.

    Rudder  - (YAW) Control motion along Vertical axis.




    Secondary Control Surface are use to improve the aircraft performance characteristics and to release the excessive control loads applied.




    Secondary Control Surface includes:

    Wing flaps - Used to increase the Lift and Drag increase while Take off.

    Slats- Located on the leading edge of the wings. Creates enough lift at high Angle of attack.

    Slots- Span wise gap present at each wing allowing air to flow between the wings, which creates lift thus reduces stall.

    Trimtabs - Connect trailing edge to large Control Surface, Used to Stabilize the aircraft.

    Balancetabs - Control loads on the control surface is significantly reduced, makes aircraft easy to fly.

    Anti-Balancetabs - Maintain the stability in the desire position.

    Servo tabs- Small Hinged device to assist the movement of the control surface.



    The Combination of this Control Surface of Aircraft helps the pilot in controlling and stressing the aircraft during flight .



    Saturday, July 11, 2020

    Aircraft Wing Structure

    Aircraft Wing Structure

              The Wing, in aeronautics are airfoils attached to each side of the fuselage Wings is the primary lifting surface of the aircraft that support the aircraft in flight, The load acting on the aircraft structure are carried the wing structure. So the design of the wing depends on many facts like lift to weight ratio, rate of climb, size, weight and which aircraft it is used, thought its shape may be widely varied its function remains the same.

    Aircraft Wing Structure


    Basic features of Wing Constructions

    The primary structural parts of the wing are spars, ribs, and stringers.


    Sparsare also called as wing beams is a main member of the wing structure, it extends from the fuselage to the tip of the wing, all the forces and loads acting on wing are carried and balances by the spars. When the engine or landing gear are mounted on the wing , Spare incorporate structure attached to the components, as spars are designed to have greater bending stress.

    Ribsare also called as plain ribs, it’s a chord wise member of the wing structure used to give wing structure it shape, It extends from the leading edge to the trailing edge of the wing It transmits air load from skin to the spars also stabilize the spare against twisting

    Stringers are assist to hold shape of wing the span wise called stringers are used. They are attached to the skin usually found fare closed spaced on the upper wing surface, it is used on compression and stiffening of the compression skin to overcome the induced bending loads. But when the wing need of more stiffening where skin is reinforced by panels instead of individual stringers.




    Based in this concept, Wing lift the aircraft on air and keeps flying.


    For more Related Topic and Information on Aircraft Technology - CLICK HERE





    Friday, July 10, 2020

    Types of Aircraft Fuselage Structure

    Types of Aircraft Fuselage

                The basics of the Aircraft Fuselage was explained in the before posts (https://sabaeroline.blogspot.com/2020/07/aircraft-fuselage-structure.html), Fuselage types would clearly explain in the present post.


    Aircraft Fuselage



        In general, fuselage is classified into three major types base on the method by which stress are transmitted to the structure.

    There are three most common types of fuselage are:

    Truss or Frame Type Fuselage


    A truss is a light gauge steel tube assemblage of members forming a frame triangular shape which giver geometric structure to the fuselage. The Primary members of Truss are the four logerons, the longerons are longitudinal member of the fuselage. Lateral bracing are placed at intervals between the longerons. The lateral surface are called as Bulkheads, Space between two bulkheads are called as bays. Lateral and Longitudinal member are made strong stell wires which are design to withstand compression during load applied.

    Truss Fuselage are sub-branched into

    • Pratt Truss
    • Warren Truss

    Monocoqne Structure


    The word Monocoqne is French word which means “single shell”. In this type the fuselage skin carries all structural stress. The design involves constructing a tube or core which involves no internal structural members which looks like a empty Shell. These types of fuselage are formed by riveting preformed two half together. This Structure carry load effective when the diameter is small. Increasing of the structure diameter depends on the internal cavity.

    Semi Monocoqne Structure


    It is combination of Truss and Monocoqne type structure together. In Present days Aircraft become large Monocoqne structure not to strong enough. Weight to strength ration is ineffective. Longerons are run length across the monocoqne structure jointing the frame together. Now the Longerons and frame is attached the thin alloy skin shell by rivets and abrasive bonding.

    Semi Monocoqne Structure type of fuselage is commonly used both military and commercial aircraft in Modern Days.


    For more Related Topic and Information on Aircraft Technology - CLICK HERE
